ZL-DLSDJPDT-003
Source:ZhongLi Tools  Time:2023-10-31 04:22:21  Views:113

Product Features

Main Technical Parameters

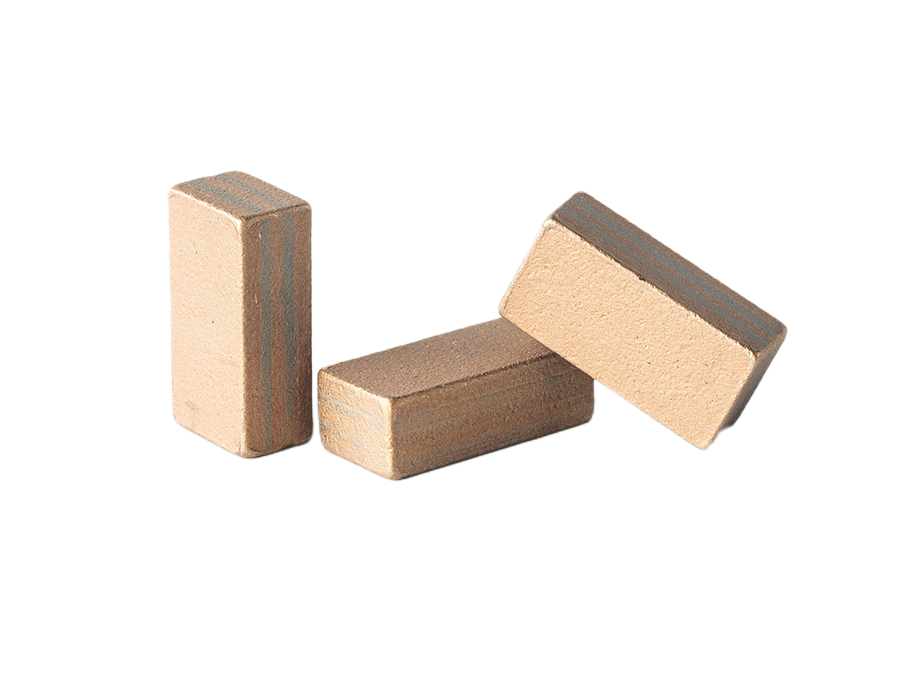

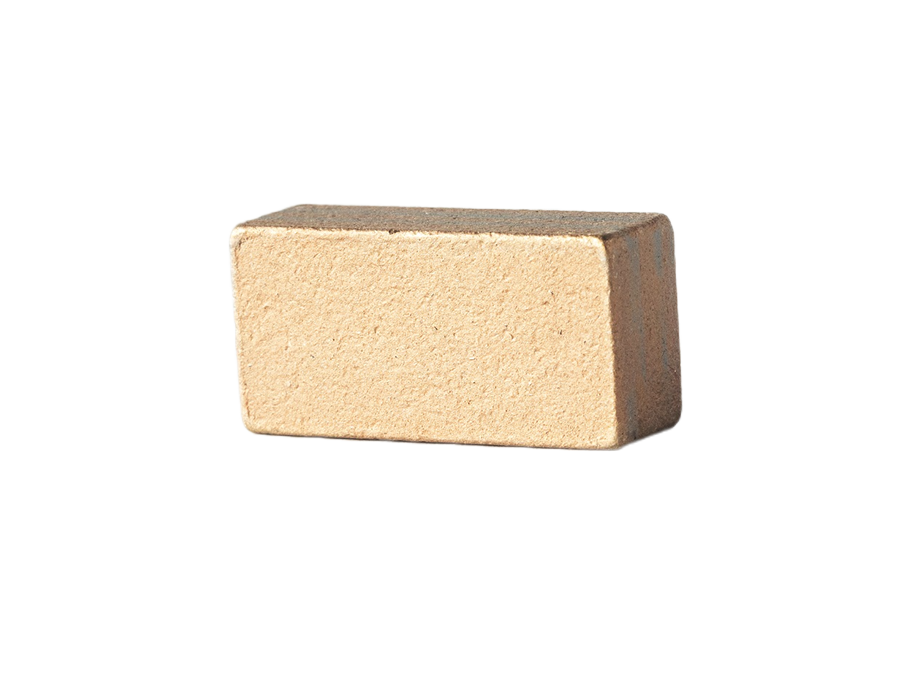

Diameter (mm) Matrix thickness(mm) Blade size(mm) Number of blades (Pcs) Application
900 5.0 24*7.5*12(15) 64 Marble
1400 6.0 24*8.5*12(15) 92 Marble
1600 7.0 24*9.5*12(15) 108 Marble
1800 7.5 24*10*12(15) 120 Marble
2000 8.0 24*11*12(15) 128 Marble
2200 8.0 24*11*12(15) 132 Marble
2500 9.0 24*12.5*12(15) 140 Marble
Tips:Other specifications can be customized according to customer needs.
Product Introduction

1. Good cutting effect: fast and smooth cutting, and flat surface of the large plate.

2. The unique design reduces the friction between the blade and the surface of the stone, allowing the diamond to be quickly exposed, with high cutting efficiency, fast cooling speed, and good debris removal effect.
