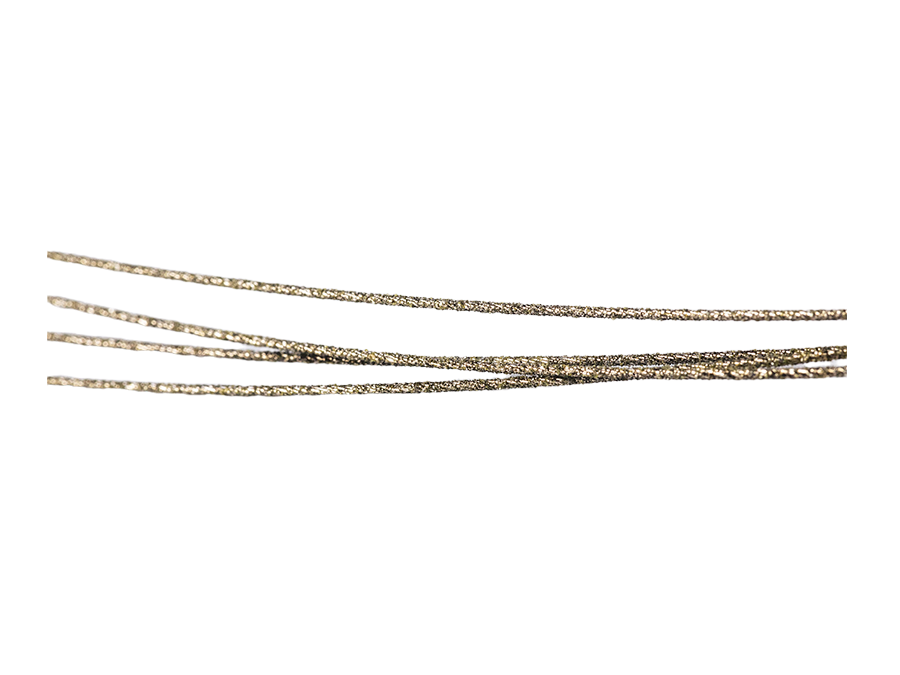

ZL-XJ-002

Source：ZhongLi Tools Time：2023-10-31 04:51:43 Views：104

Product Features

Applied in the photovoltaic industry (single crystal, polycrystalline silicon slice), cutting of hard and brittle materials such as sapphire, magnetic materials, ceramics, etc.

Main Technical Parameters

Purpose	Model	Perimeter/mm	Wire diameter/mm	Breaking force/N
Monocrystalline silicon truncation	HXS0652960	2960	0.65	≥210
	HXS0502960	2960	0.50	≥160
	HXS0422960	2960	0.42	≥150
Single crystal silicon square root	HXS0504100	4100	0.50	≥160
Single crystal silicon square root	HXS0424100	4100	0.42	≥150

Tips：Other specifications can be customized according to customer needs.

Product Introduction

1) Unidirectional high-speed motion, high cutting efficiency, cutting efficiency can reach more than twice that of long wire cutting;
2) Unidirectional uniform motion, low loop loss, long service life, and minimal damage to the guide wheel, reducing consumables costs;
3) Unidirectional high-speed uniform motion, better stability of the cutting process centerline, higher cutting accuracy, can reduce subsequent machining allowances and processes, greatly reducing machining costs.
